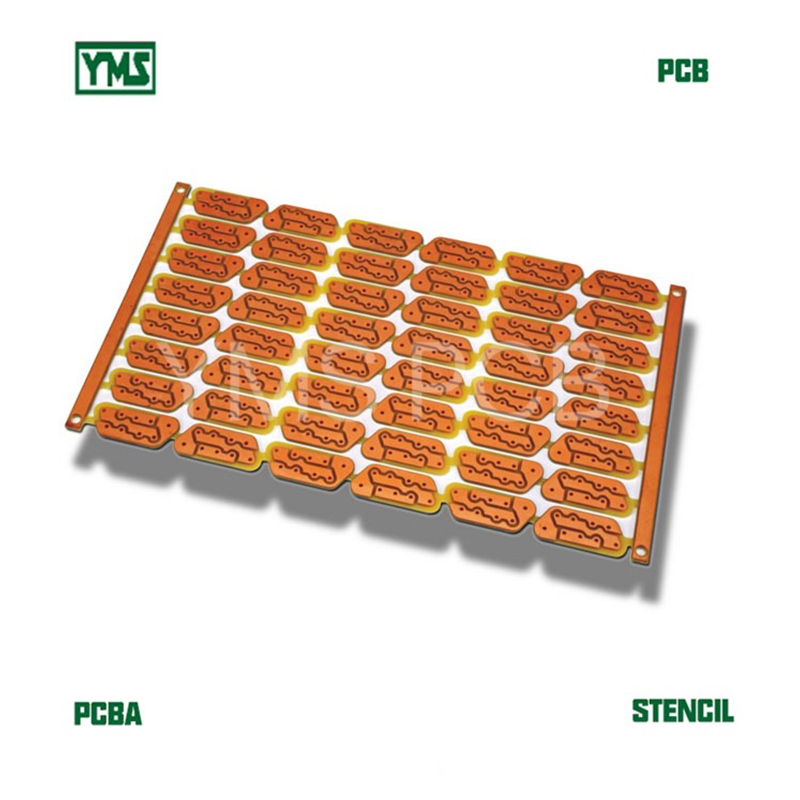

4 Layer Flexible Circuit Board With Coverlay & Impedance

This FPC is using in digital products, computers with LCD screens, mobile phones, aviation, and aerospace.

Send Inquiry

Product Parameters

Model NO. YMS-PCB2349345
Layer count: L4
Surface Finishing: Immersion Gold (ENIG, gold thickness “2u”)
Material: PI (Polyimide from Sheng Yi and Dupont)
Copper Thickness: 35um (1 OZ)
Min. Hole Size: 0.15mm
Min. Line Width/Spacing: 2MIL
Cover lay: yellow cover lay with Electromagnetic film
Stiffer: PI&FR-4 stiffer (0.1mm&0.3mm)
Silkscreen: white
Impedance control: yes
Certificates: TS16949, UL, RoHS, SGS, ISO9001, ISO14000, CE, GS
Standard: IPC-II, REACH
Lead time: 4 days
Shipping method: DHL/UPS/TNT/FedEx
Application: Computer with LCD Screen, Mobile Phone
Keyword: Flexible PCB/FPC/flex board/flex circuit board/RIGID-FLEX
Brand: YMS PCB
Board Thickness: 0.13mm
Original: made by YMS PCB from China supplier
HS Code: 8534009000
Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

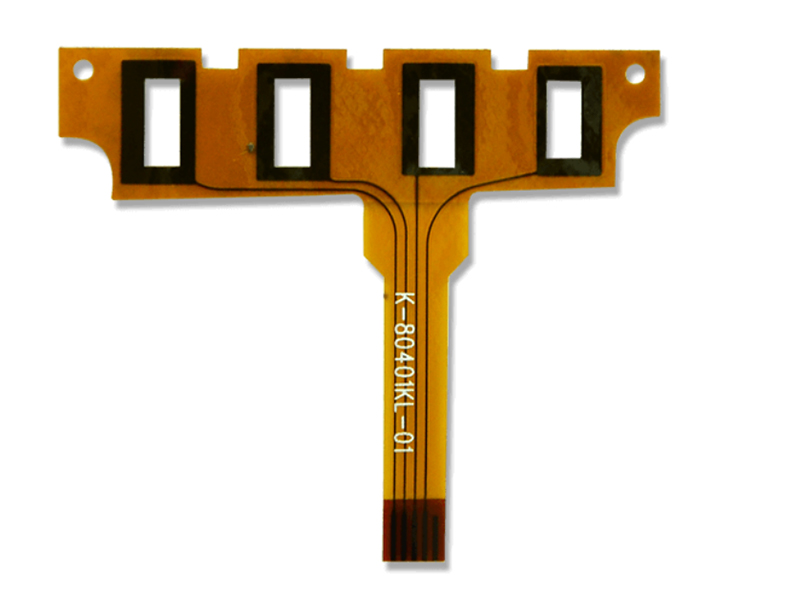

4 layer flexible circuit board with coverlay & impedance4

Product Features

Min trace with is 2mil, min trace space is 2mil, min holes is 0.15mm.
We have made FPC (FLEX board) since 2010, our products are used in Display Screen, Cameras, CCTV, Car-electronic equipment.
We offer a one-stop solution for PCB and FPC, we do the component sourcing for customers and offer assembly service.
We provide a function test service. We offer the below treatment for PCB/FPC: ENIG, Gold Fingers, Immersion Silver, Immersion Tin, HASL(LF), OSP, ENEPIG, Flash Gold; Hard gold plating with gold fingers up to “200u”.
4 layer flexible circuit board with coverlay & impedance5
Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.
