2 Layer Pcb Circuit Board Sample In 12 Hours

We made this 2-layer circuit PCB within 12 hours. YMS PCB made all of our processes inside without subcontract includes lamination, finished treatment like LF HAL, ENIG, OSP which can help us to control the quality and delivery time. We have a special line for the sample project, to ensure on-time delivery, the sample line is working 24 hours so we can finish the sample in 24 hours for 2-layer board, 48 hours for 4-layer board, and 72 hours for 6-layer multilayer board.

Send Inquiry

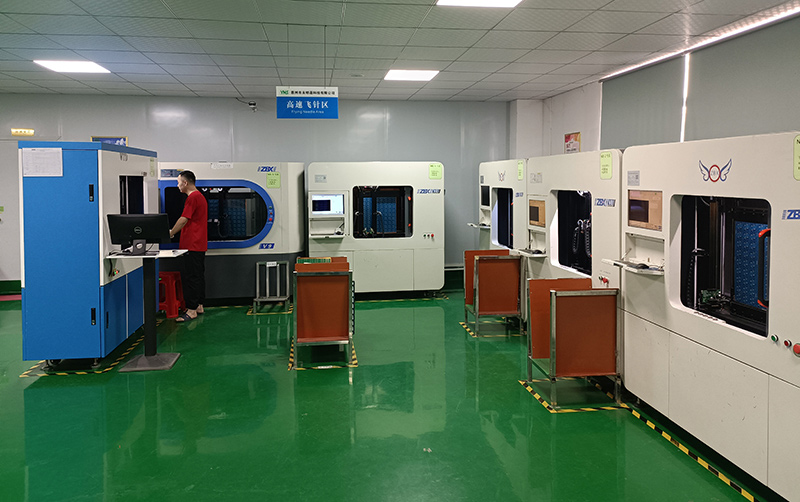

We use the flying probe for the electronic test, equipment as below picture shown.

2 layer pcb circuit board sample in 12 hours4

For volume mass production, we can finish it in 5-7 days.

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Product Details

Layer count 2
Material FR-4 TG135
Board size(mm) 100 X 100
Board size(inch) 3.937 X 3.937
Board thickness 1.6mm(63mil)
Layer copper 1/1 OZ
Min hole 0.4mm
Min trace width 6mil(0.15mm)
Min trace gap 6mil(0.15mm)
Surface treatment Lead-Free HAL
Application CCTV, FIRE ALARM
Solder mask green
Silkscreen white
Standard IPC-II
Impedance NO

Product Features

Short lead time is the main point of this board.
We can finish the product in 24 hours or even 12 hours.
For the overseas customer, we sent it with our account of DHL/FedEx/UPS/TNT, it takes only 2 days from China to the USA, Europe, India, Australia, Canada…
Using our forwarder will have more discount compare to using customer’s forwarder locally.

2 layer pcb circuit board sample in 12 hours5

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.
