Mentron4(M4)/Mentron6(M6) Material From Panasonic, Antenna China Pcb Supplier From Shenzhen Custom

This PCB are using special high-speed material, it’s MENTRON6 (M6) from PANASONIC
YMS support all kindly of special material, high speed material, high frequency material like
MENTRON4 (M4) from PANASONIC, MENTRON6 (M6) from PANASONIC, ISOLA HR370
ROGERS 4003/4350/5880, TACONIC, POLYIMIDE, BT, PTFE.

Send Inquiry

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Product Parameters

Layers: 8 layers
Board Thickness: 2.0mm (0.08inch)
Copper weight: 1/1/1/1/1/1/1/1 OZ
Material: FR-4 HIGH TG TG170
Min Holes: 0.2mm (8mil)
Minimum Line Width/Clearance:0.1mm/0.1mm (4mil/4mil)
Board Size: 162mm x 135.16mm
Surface Treatment: ENEPIG
Applications: Medicals Equipment, Telecom Communication Equipment, Aerospace product, Computer industry
Impedance Control: Yes
Solder mask color: green
Silkscreen color: white
Certification: TS16949, ISO9001, ISO14000, UL, SGS, RoHS
MOQ: 1 PCS
Shipping method: SF Express for domestic customer, DHL/UPS/TNT/FedEx for oversea customer.

Product Features

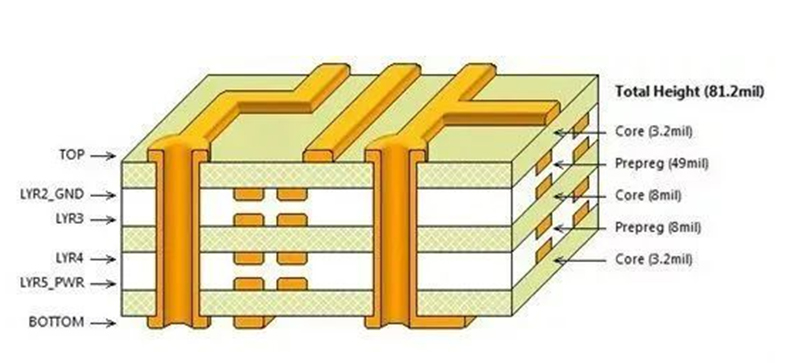

Over 60% of the PCB from YMS is multilayer PCB, unlike a Double-Sided PCB which only has two conductive layers of material, all multilayer PCBs must have at least three layers of conductive material which are buried in the center of the material.

mentron4(m4) mentron6(m6) material from panasonic antenna china pcb supplier from shenzhen custom4

Benefits of Multilayer PCBs
Smaller size (considerable savings on space)
Increased flexibility.
Easier incorporation-controlled impedance features.
EMI shielding through careful placement of power and ground layers.
Reduces the need for interconnection wiring harnesses (reduces overall weight)
