24 Layer Circuit Board, High Frequency, High Speed, Isola 370Hr Material

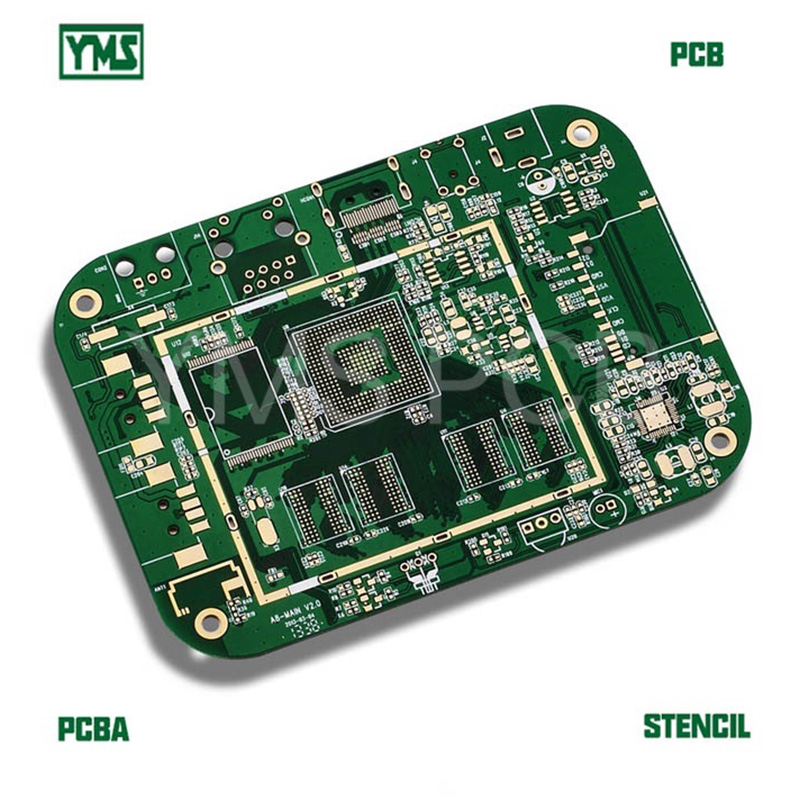

This is 24 layers circuit PCB, using high frequency and high-speed material like ISOLA 370HR, M4/M6 material from PANASONIC. This PCB is used in the telecom communication industry, we support this high precision PCB to many domestic customers from China and overseas customers from the US, Europe, and Japan.
The ENIG gold thickness is 5u” with edge gold plating, the BGA vias are plugged by solder mask from both sides, the BGA PITCH is only 20mil with 10mil BGA pads and 3/3mil min trace width and spacing.

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Send Inquiry

Product Parameters

Layers: 24 layers
Board Thickness: 1.6mm+/-0.16mm
Copper weight:1 OZ for outer layer and H OZ for inner layer
Material: FR-4 TG 170 MENTRON6(M6) material from PANASONIC
Min Holes: 0.2mm (8mil)
Minimum Line Width/Clearance: 0.075mm/0.075mm (3mil/3mil)
Minimum spacing from Inner Layer PTH to Line: 0.2mm(8mil)
Board Size: 160mm x 100mm (0.63 x 3.937 inch)
Aspect Ratio: 8:1

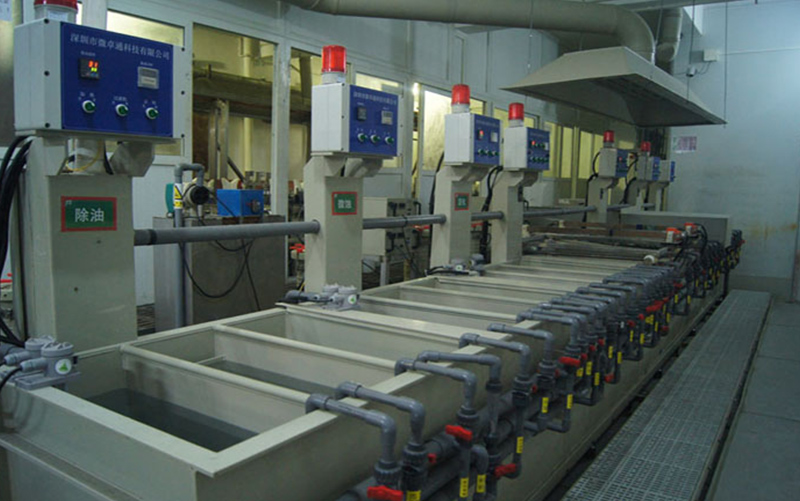

Surface Treatment: ENIG (gold thickness 5u”), we have our gold line for ENIG (Immersion Gold)

24 layer circuit board high frequency high speed isola 370hr material4

Applications: Telecom Communication Industry
Impedance Control: Yes. 50 ohms for single-end and 100 ohms for diff pair
Solder mask color: green.
Silkscreen color: white.

Product Features

The high layer counts up to 24 layers.
ENIG gold thickness “5u”.
Special material from PANASONIC, MENTRON6(M6).

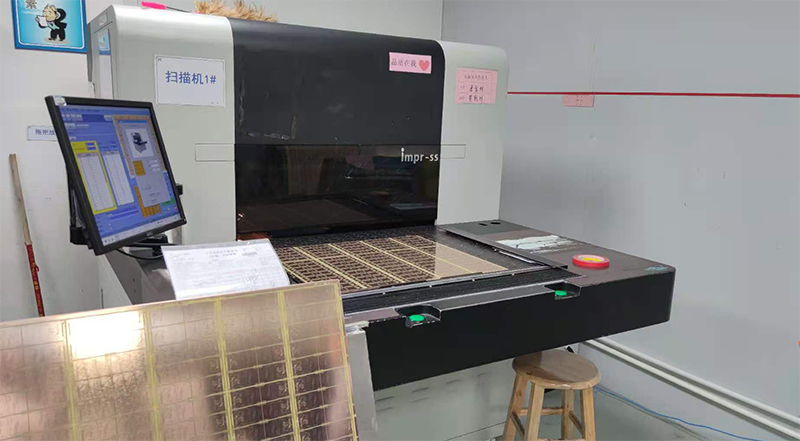

High precision with 3/3mil trace width and spacing—all of our PCBs will pass the AOI test to ensure no nick, short and open.

24 layer circuit board high frequency high speed isola 370hr material5
