4 Layer Rigid-Flex Board From Oem China Pcb Supplier. One Stop Pcba Service + Dip + Smt + Component Sourcing

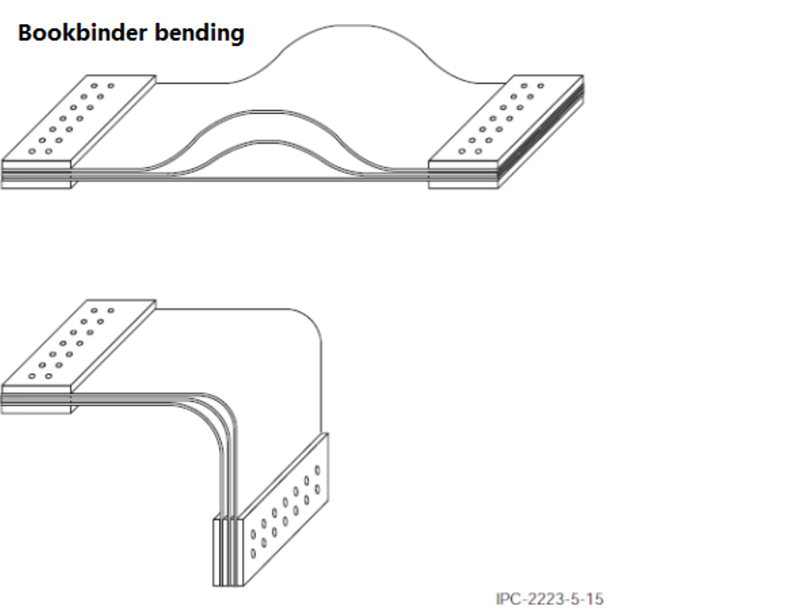

Rigid-flex PCB, bend radius controls the flexibility of the flex portion of the board. The thinner the material the lower the bend radius and the more flexible the flex section.

Send Inquiry

4 layer rigid flex board from oem china pcb supplier one stop pcba service + dip + smt + component sourcing4

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Product Parameters

Layers L4 Rigid flex PCB
Board Thickness 1.2mm+/-0.12mm
PCB thickness in flex section 0.15mm+/-0.03mm
Base Material PI+FR4 TG135
Min mechanical Holes 0.15mm
Minimum Line Width/Clearance 0.1mm/0.1mm(4mil/4mil)
Minimum Clearance between Inner Layer PTH to trace 0.21mm
Size 176.45mm × 123.64mm
Surface treatment OSP+ENIG
Special point 2OZ copper for flexible PCB, special stack to meet impedance value
Differential impedance 100+10/-10Ω  50+5/-5Ω  120+12/-12Ω
Applications Power supply, 5G CPE, Antenna

Capabilities Of Our Rigid-Flex PCB Product

YMS PCB Rigid-Flex PCB manufacturing capabilities overview
Feature capabilities
Layer Count 2-20L
Rigid-Flex Thickness 0.3mm-5.0mm
PCB thickness in flex section 0.08-0.8mm
copper Thickness 1/4OZ-10OZ
Minimum line Width and Space 0.05mm/0.05mm(2mil/2mil)
Stiffeners Stainless steel,PI, FR4 ,Aluminum etc.
Material Polyimide Flex+FR4, RA copper, HTE copper, polyimide, adhesive
Min mechanical Drilled Size 0.15mm(6mil)
Min laser Holes Size: 0.075mm(3mil)
Surface Finish Suitable Microwave/RF PCB surface finishes: Electroless Nickel, Immersion Gold, ENEPIG, Lead-free HASL, Immersion Silver…
Solder Mask Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green…
Cover lay (Flex Part) Yellow Cover lay, White Cover lay, Black Cover lay
