YMS PCB offers a one-stop service to over 3400 electronic customers from more than 64 countries. We support integrating PCB design, PCB board production, PCBA sample express, and mass production. We offer a quick sample service like 12 hours for a 2-layer sample BARE PCB, 3 days quick lead time for sample PCBA.
Cost advantage: we support BARE PCB fabrication, offer component service with low price and quick lead time, PCBA assembly in China with low labor cost to make the final product at a competitive price.
Professional PCB and component procurement team over 8 years in the PCB/PCBA industry.
High precision equipment and a good quality control system.
Professional engineer team with good English speaking and writing.

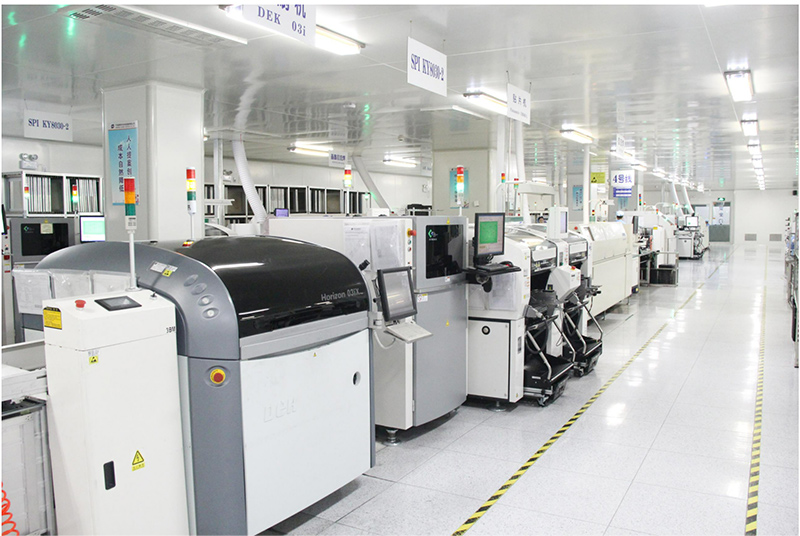

One of our assembly equipment.
Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.
| Layer count | 14 |
| Material | FR-4 TG180 |
| Board size(mm) | 220 X 87 |
| Board size(inch) | 8.661 X 3.425 |
| Board thickness | 2.4mm |
| Outer layer copper | 1 OZ |
| Inner layer copper | H OZ |
| Min hole | 0.3mm |
| Min trace width | 4mil(0.125mm) |
| Min trace gap | 4mil(0.125mm) |
| Aspect ratio | 8:1 |
| Surface treatment | Flash gold (gold plating) |
| Application | Electronic hardware product |
| Solder mask color | BLACK |
| Silkscreen | WHITE |
| Standard | IPC-II, IPC-III, MIL |
| Certification: | IS9001, IS14000, UL, SGS, TS16949 |
Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.
