With Ul, Ts16949, Iso9000 Certification, Supporting Bom With Free Stencil From Pcb Town Of China

We certify that all chemical substances in our pcb/pcba product and production process comply with all applicable rules or orders under tsca and all of our products are tsca compliant and don’t contain below mineral:
•Decabromodiphenylether (DecaBDE)
•Phenol, isopropylatedphosphate (3:1) (PIP (3:1))
•2,4,6-Tris(tert-butyl)phenol (2,4,6-TTBP)
•Hexachlorobutadiene (HCBD)
•Pentachlorothiophenol(PCTP)
All of our products, rigid-flex circuit board, pcb, printed circuit board meet the sgs requirement.

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Send Inquiry

Product Parameters

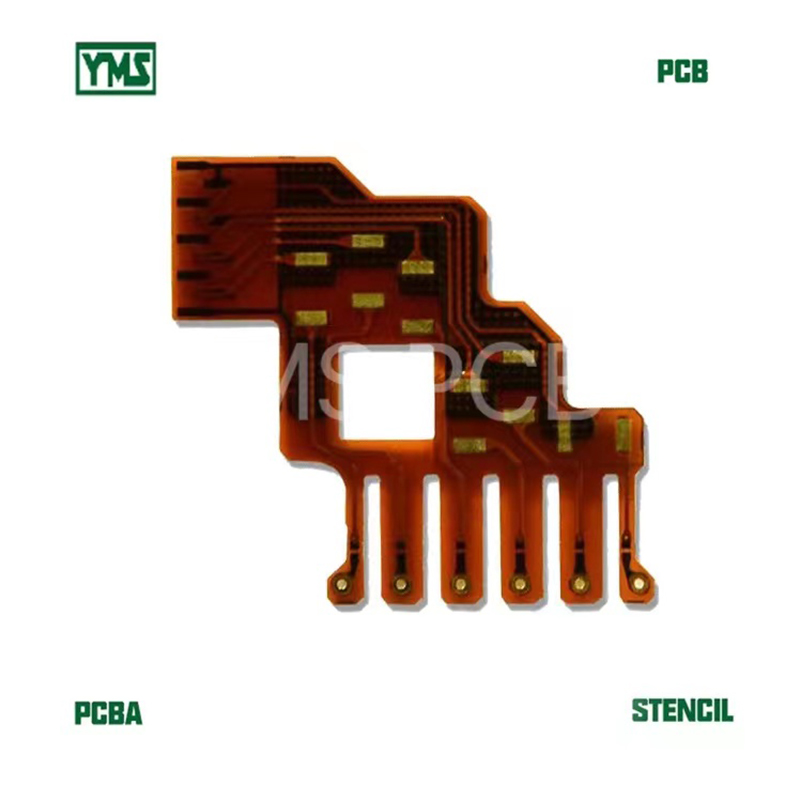

Type: Rigid-Flex PCB with stiffer and hard gold keypads
Material: PI with electromagnetic shielding + FR-4 halogen-free
Min. Hole Size: 0.2mm
Min. Line Width & Spacing: 0.1mm/0.1mm
Board size: 213.5 x 87.96mm
Copper: 1 OZ for all layers
Standard: IPC-II, IPC-III, MIL
Certificates: TSCA, UL, RoHS, SGS, ISO TS16949 IATF
Solder mask: GREEN
Silkscreen: WHITE
Special point: Semi-Flex PCB with bend angle 180°
Applications: Consumer electronics

Product Feature

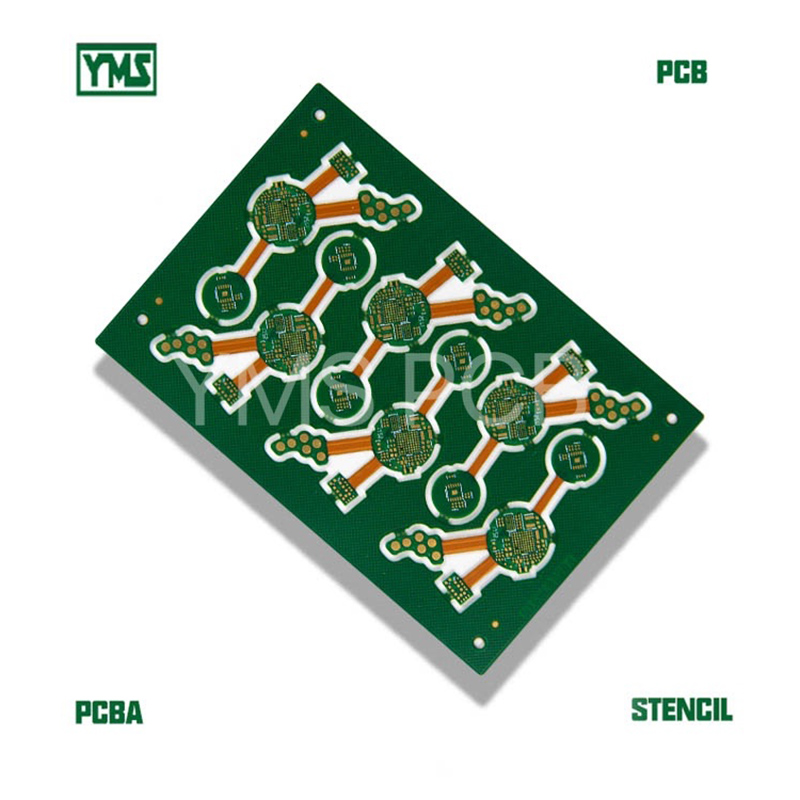

We support rigid-flex PCB, HDI board, and special PCB

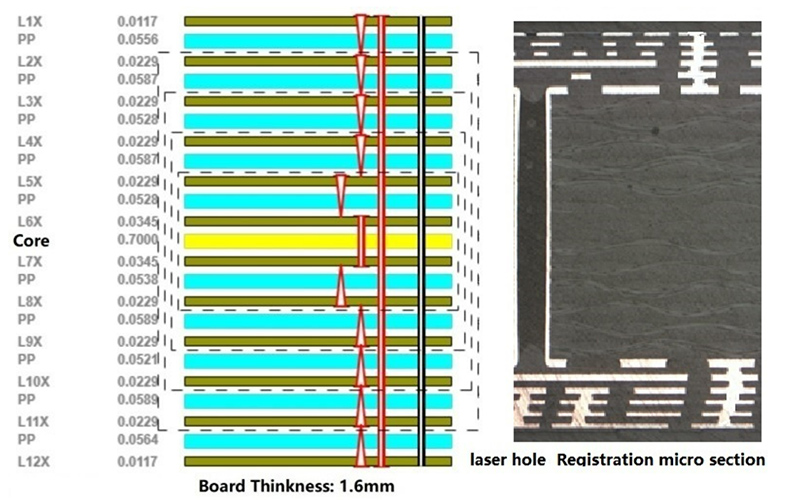

Below is our capability of HDI PCB with laser holes, blind and buried holes, any layer。

with ul ts16949 iso9000 certification supporting bom with free stencil from pcb town of china4

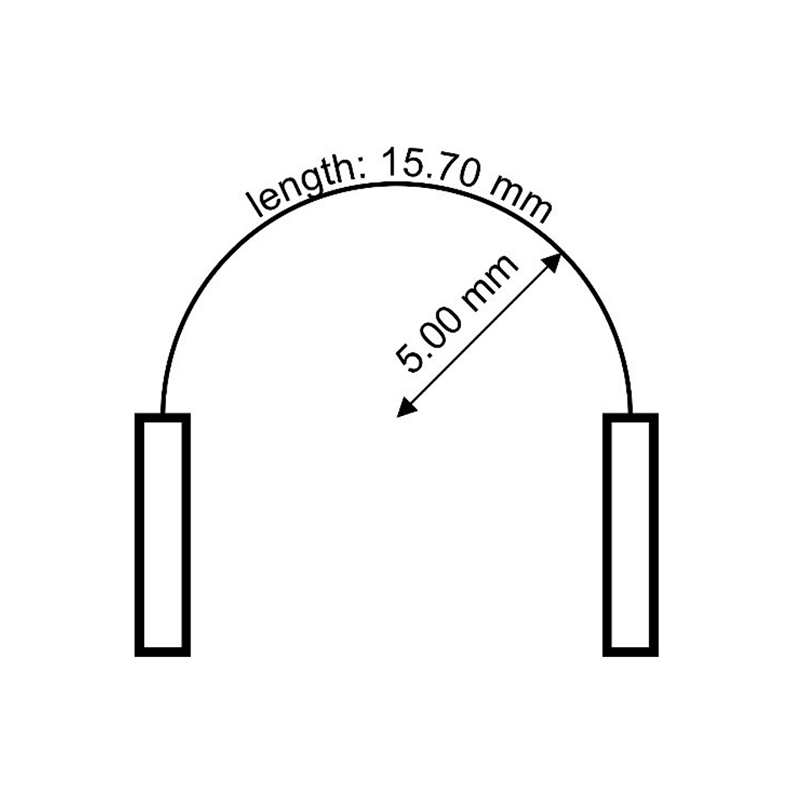

The most traditional manufacturing process of semi-flex PCB is adopting the bending FR-4 materials and making PCB according to the traditional rigid PCB manufacturing process, and then using the deep milling technology to thin the areas that need to be bent so that it has a certain degree of flexibility, to meet the requirements of assembly bending connection.

with ul ts16949 iso9000 certification supporting bom with free stencil from pcb town of china5
