Medical Equipment Pcb

PCB is the short name of PRINTED CIRCUIT BOARD. It’s a very important product in the electronic hardware industry, all the components are assembled on the PCB to meet the request function. The PCB is widely used in medical devices, LEDs, consumer electronics, industrial equipment, automotive components, aerospace components, maritime applications, safety and security equipment, telecommunications equipment.

Send Inquiry

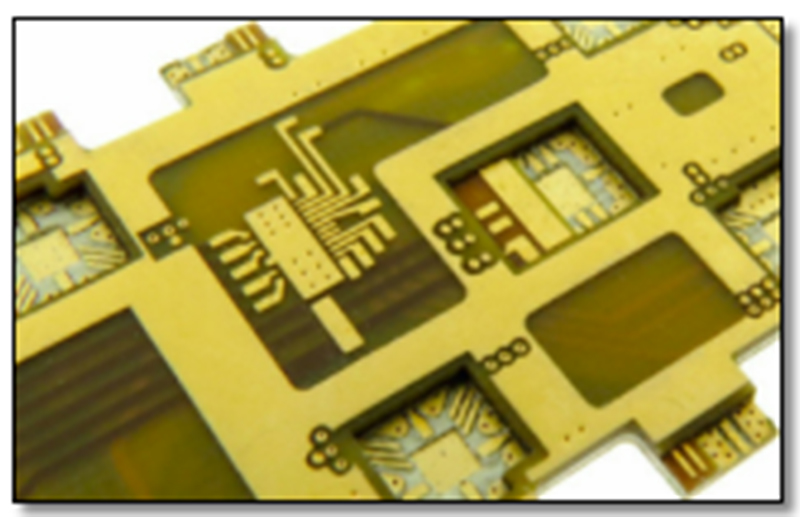

medical equipment pcb3

This PCB is used in medical equipment with over 30,000 PCS per year.

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Product Details

Layer count 4
Material FR-4 TG150
Board size(mm) 125.5 X 114.62
Board thickness 2.5mm
Outer layer copper 1 OZ
Inner layer copper 1 OZ
Min hole 0.3mm
Min trace width 6mil
Min trace gap 6mil
Aspect ratio 8:1
Surface treatment Flash plating gold, ENIG, OSP
Application Medical Equipment
Solder mask color red/yellow
Silkscreen White/black
Standard IPC
Impedance Yes

Product Features

Turnkey Pro by YMS PCB.
PCB fabrication, Component Procurement, and Assembly.
Bundled together in an entirely online process.
Reviewed and tested by Engineers.
DFA & DFM Checks on every order.
Shipping from China in as fast as 2 days.

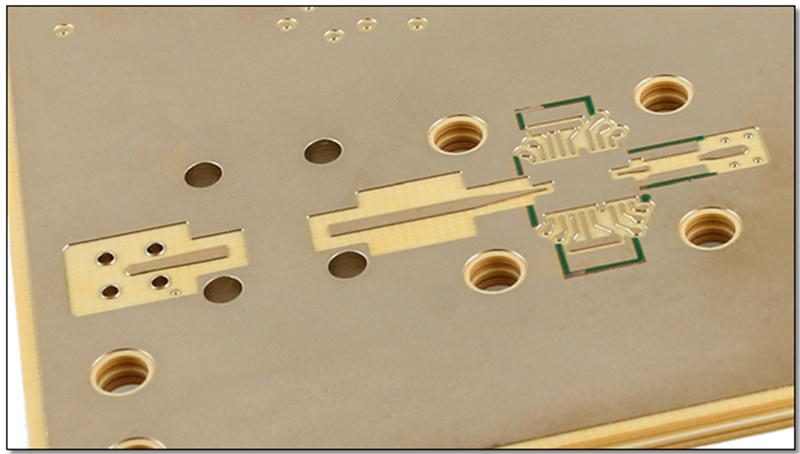

medical equipment pcb4

Advanced PCBs by YMS PCB

Custom boards with a dedicated account manager and stack-up assistance;
Complex PCB requirements;
Mil-spec & IPC Class 3 with HDI features;
Blind & Buried Vias;
Flex & Rigid-Flex boards.
