Military Pcb

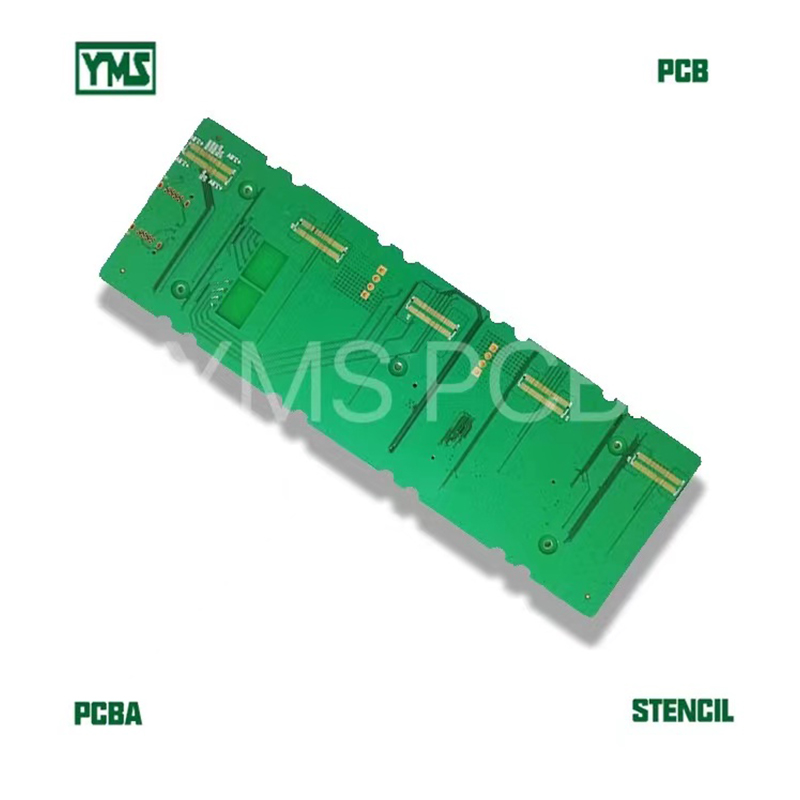

This Military PCB board is used in the automotive industry with TS16949 certification. We worked with many customers in the automotive industry, like TOYOTA from Japan. It’s the keyboard with 30u” hard gold on the keypads.

Send Inquiry

military pcb3

YMS PCB is offering the below service since 2000, electronic assembly (PCBA), hardware or embedded software design (PCB design and layout), PCB supply (PCB fabrication), pre-compliance EMC testing. We can turn your ideas into reality based on ISO9001 certification and IPC-A-600 & IPC-A-610 compliant production facilities.

Pls contact us at sale[email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Product Parameters

Layers: 12 layers
Board Thickness: 2.0mm+/-0.2mm
Copper weight: 1/H/H/H/H/1/1/H/H/H/H/1 OZ
Material: FR-4 TG 150
Min Holes: 0.2mm (8mil)
Minimum Line Width/Clearance: 0.01mm/0.01mm (4mil/4mil)
Board Size: 130mm X 110mm
Aspect Ratio: 10:1
Surface Treatment: ENIG (gold thickness 2u”) + selective hard gold plating on the keypads
Applications: automotive industry
Impedance Control: Yes, 50ohms for single-end and 90 ohms for diff pair
Solder mask color: green
Silkscreen color: white
Standard: IPC-II
Certification: TS16949 certification
BGA size: 8x6mm with resin plug holes
