Oem Circuit Board With One Stop Solution, 1.6Mm, Osp, Rigid-Flex, Fpc

It’s 8 layers Rigid-flex PCB, 6+2 stack up means 2 layers flex and 6 layers rigid. With 2 step laser holes from L1-L3, L6-L8, Via in pad process. The brand of our laser drill equipment is MITSUBISHI from Japan, we support HDI board and HDI + rigid-flex PCB.

Send Inquiry

oem circuit board with one stop solution 16mm osp rigid flex fpc4

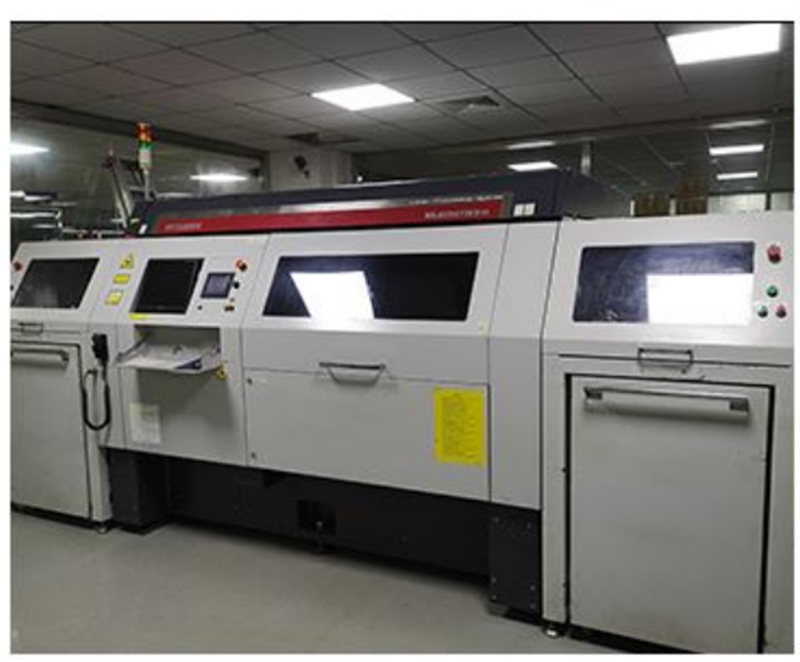

HDI Laser Drill Machine From MITSUBISHI

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Product Specification

Layers: 8 Layers Rigid-flex board,2 layers flex layer + 6 layers rigid layer.

Hierarchical Structure

Need to add rigid core board in the stack up to meet impedance value, same as stack-up of 10 layers board.
impedance control requirement with special stack up.
BGA resin on holes, via-in-pad=VIP process, BGA with a small pitch.
Finish treatment: ENIG (Immersion Gold).
Blue solder mask + yellow cover lay.

Product Features

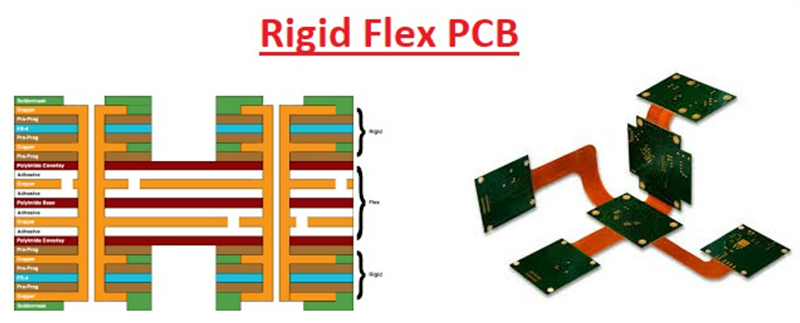

Rigid-Flex PCB is being manufactured by the combination of rigid and flexible printed circuit boards. This circuit board usually comprises many layers of flexible substance and one or more than one board of rigid PCB.

oem circuit board with one stop solution 16mm osp rigid flex fpc5

The Hot Tags Of This Product
8 layers rigid-flex board
8 layers HDI PCB
China suppliers, manufacturers, factories,
Competitive price, customized, low price, high quality,
PCB quotation quick turn service, 24 hours, 12 hours
Electronics PCB, SMT, DIP, PCBA
Peelable mask, carbon ink PCB
RoHS Compliance PCB
IPC standard, IPC netlist, REACH, SGS

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.
