26 Layer Pcb, Copper Clad(Resin) Plug Hole Board, Warp & Twist 0.5%, 5.0Mm Thickness

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Product Parameters

Layers: 26 layers
Board Thickness: 5.0 mm +/-5%
Copper weight: 1/1/1/1/1/1/1/1/1/H/H/H/H/H/H/H/H/1/1/1/1/1/1/1/1/1 OZ
Material: FR-4 TG 170 halogen-free material/solder mask/silk-screen
Min Holes: 0.5mm (20mil)
Minimum Trace Width: 3mil
Minimum Trace Spacing: 3mil
Board Size: 120mm x 130mm (4.724 x 5.118 inch)
Surface Treatment: ENIG (Immersion Gold) 2u” gold thickness+ Gold fingers (edge plating) with 30u” hard gold
Applications: 5G station, the motherboard in the computer, electronic hardware
Impedance Control: Yes
Solder mask color: green
Silkscreen color: white
Shipping date: 7 days
Payment term: TT

Product Features

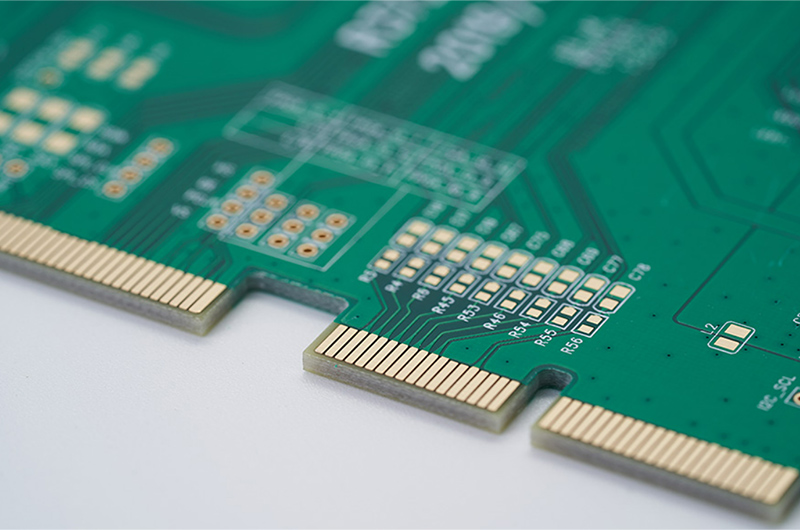

It’s a multilayer layer board of up to 26 layers. It’s a halogen-free product using halogen-free raw material, halogen-free solder mask, and halogen-free silkscreen. Board thickness is 5.0mm, its thick board need to do special control in the PTH process. Gold fingers need hard gold on the edge connector and do chamfer

It’s RF PCB–Radio Frequency Printed Circuit Boards. Within the radio frequency class, anything above 2GHz is a Microwave PCB. Microwave PCBs are classified as any RF circuit board operating above 2GHz.
