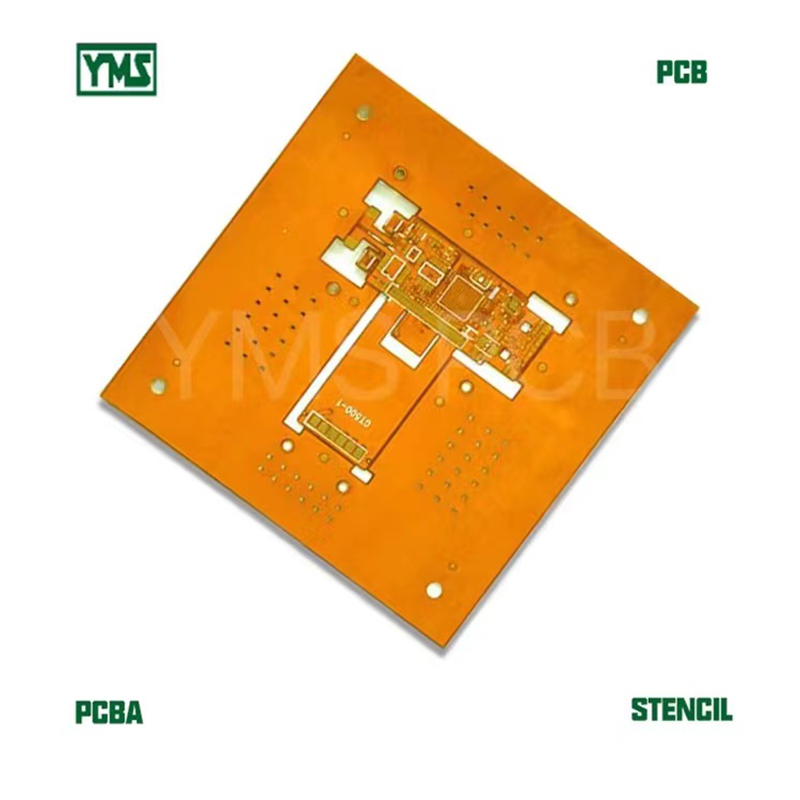

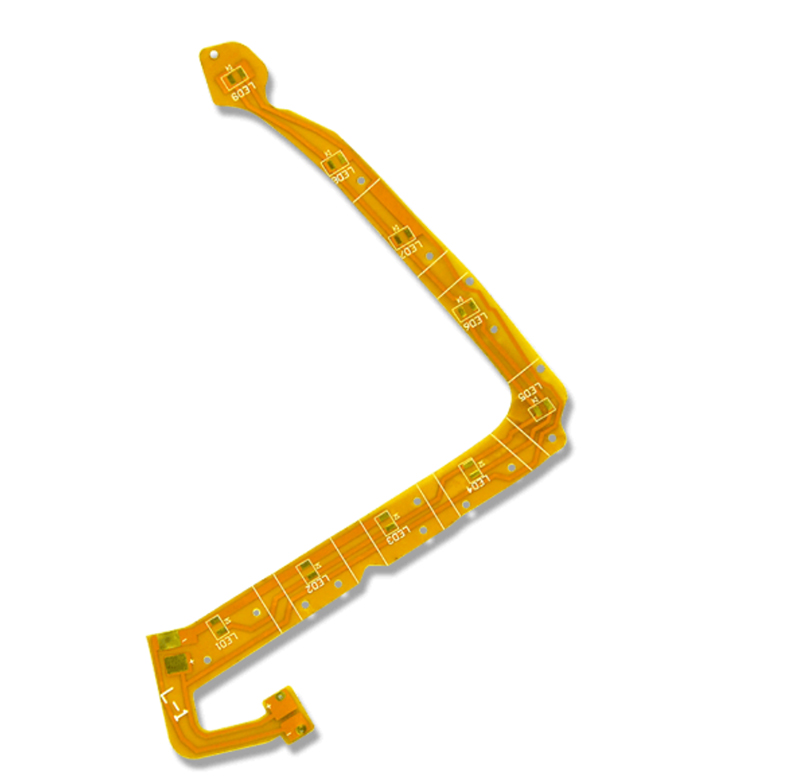

Layer count: double-sided FPC
Material: PI (Polyimide)
Structure: adhesive+low loss yellow cover film+Line copper+plastic+high frequency dielectric polyimide substrate+glue+line copper+Low loss yellow cover film
Tolerance: free bending over 10,000 times, folding
Board size: 13.5 x 24.2 mm
Minimum line width/line distance: 0.06mm/0.09mm (2.5mil/3.5mil)
Min hole: 0.15mm (6mil)
Stiffener: positive and negative 0.15mm steel stiffener
Process: solder coating, plug planting, cover, film type, solder mask type shielded scratch
Surface treatment: ENIG (immersion gold) 2u” Standard: IPC-II
Lead time: 24-48 hours
HS Code: 8534009000
Applications: Computer with LCD Screen, Mobile Phone
Impedance Control: Yes, 50ohm for single-end and 100 ohms for diff pair

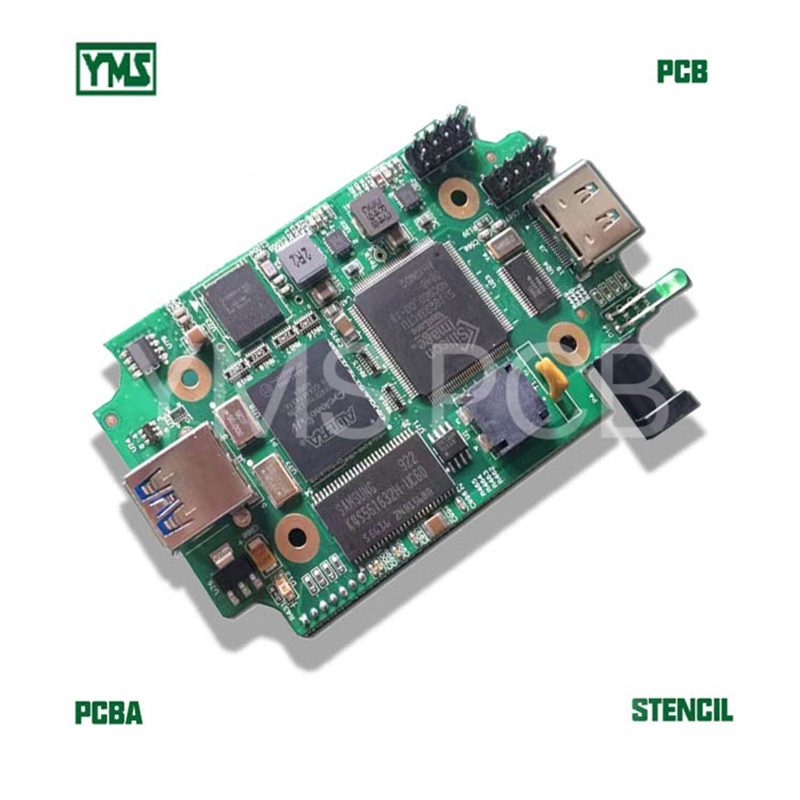

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

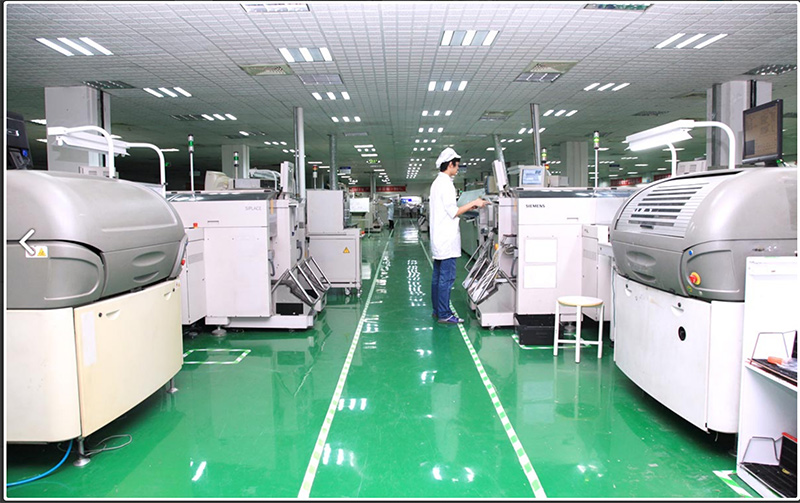

Our FPC factory is founded in 2000, we provide world-class customer support services.We are an industry leader in automotive, telecommunications, computer, industrial control, medical and power, and energy PCB.
We support 1-to-34 layers rigid and 2-14-layer flex and rigid-flex PCBs.
