Pcb, Printed Circuit Board With Heavy Copper(11 Oz), Carbon Ink, Peelable Mask(Blue Mask)

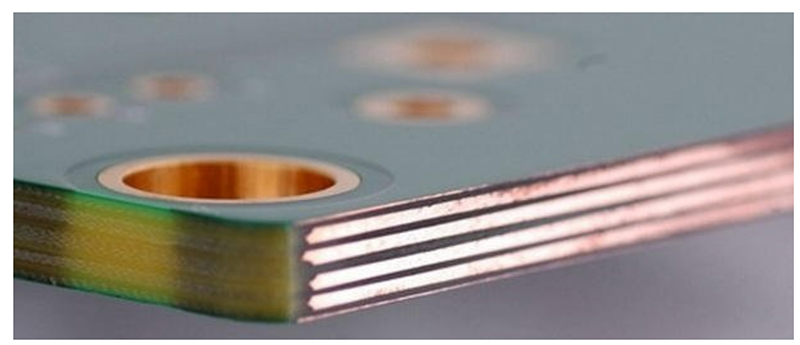

This PCB request 11 OZ (350um) on the outer layer. Normally the standard copper weight on the board is 1 OZ or 2 OZ, but YMS PCB can make a board with 12 OZ copper. The heavy copper PCB (PRINTED CIRCUIT BOARD) is widely used in power electronic equipment, power supply system, industrial control system, UPS equipment, etc. Compare to standard copper weight 1 or 2 OZ, normally when the copper is over 3 OZ (105um), we will call it heavy copper board.

Send Inquiry

The heavy copper board permits the printed circuit to conduct higher current, smarts good heat distribution, and implement complicated switches in a very restricted house. Other advantages embody magnified mechanical strength in connector locations, the ability to create smaller product sizes by integrating multiple weights on the same layer of the circuit, and the ability to use special materials to achieve their maximum capacity with minimal risk of circuit failure.

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

pcb printed circuit board with heavy copper(11 oz) carbon ink peelable mask(blue mask)4

Product Details

Layer count 2
Material FR-4 TG135
Board size(mm) 120.32 X 214.52
Board size(inch) 4.737 X 8.446
Board thickness 1.6 mm
Outer layer copper 11 OZ (350um)
Min hole 0.4mm
Min trace width 20mil(0.5mm)
Surface treatment LF HAL
Application power electronic equipment, power supply system, industrial control system, UPS equipment…
Solder mask color green
Silkscreen white
Standard IPC-II
Impedance NO

Product Features

There are many welding methods of the heavy copper board, and different welding methods of copper products are also different.
The commonly used methods include gas welding, manual carbon arc welding, manual arc welding, and manual argon arc welding. Automatic welding can also be used for large structures.

Method of welding heavy copper board as below
(1) Gas welding
(2) Carbon arc welding
(3) Manual arc welding
