8 Layer Rigid-Flex Hdi Board With Usb Hub, Pcb/Pcba/Fpc/Fpca China Electronic Hardware Manufacturer

This is an HDI board + rigid-flex which needs high technical and high precision equipment.

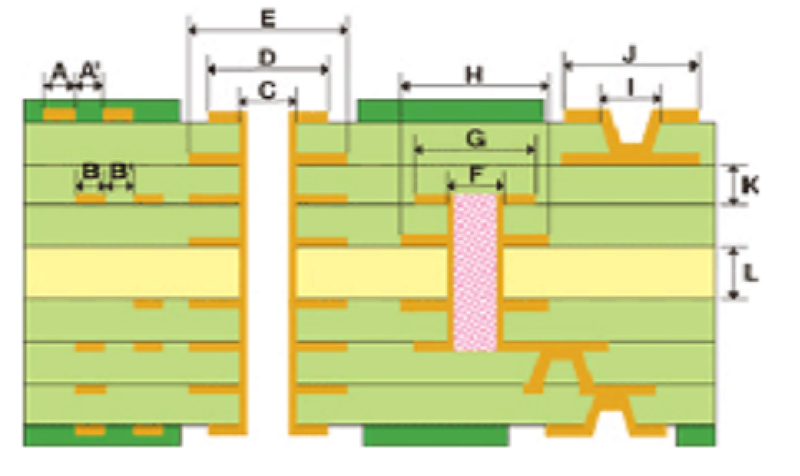

The stack-up is below with blind and buried holes. The through-holes are from L1-L8, the blind holes are from L1-L2, L6-L7, L7-L8, the buried holes are from L3-L6, need 3 times pressing.

Send Inquiry

8 layer rigid flex hdi board with usb hub pcb pcba fpc fpca china electronic hardware manufacturer4

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Product Parameters

Layer count 8
Material FR-4(ITEQ) + PI
Board size(mm) 143.2 X 156.43
Stack up: 6(rigid) + 2(flex)
Board thickness 2.0mm(rigid) + 0.15mm(flex)
Layer copper 35um for the outer and inner layer
Min hole 0.125mm (5mil)
Min trace width 4mil for the rigid area, 3mil for flex area
Min trace gap 3mil(0.075mm) for rigid area, 2mil(0.05mm) for flex board
Surface treatment ENIG with “3u” gold
Application Camera Module, Medical Instrument, Lighting
Solder mask color Green solder mask for rigid area + yellow cover lay for flex board
Silkscreen white

Product Features

Rigid-flex printed circuit boards (PCBs) are the composite boards of rigid boards and flexible boards. Most rigid-flex circuits are multi-layers. A rigid-flex PCB can include one/several flex boards and rigid boards, which are connected through internally/externally plated-through holes.
The Rigid-flex PCB made by YMS PCB is used on battery protection boards, camera modules, and mobile phones…

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.
