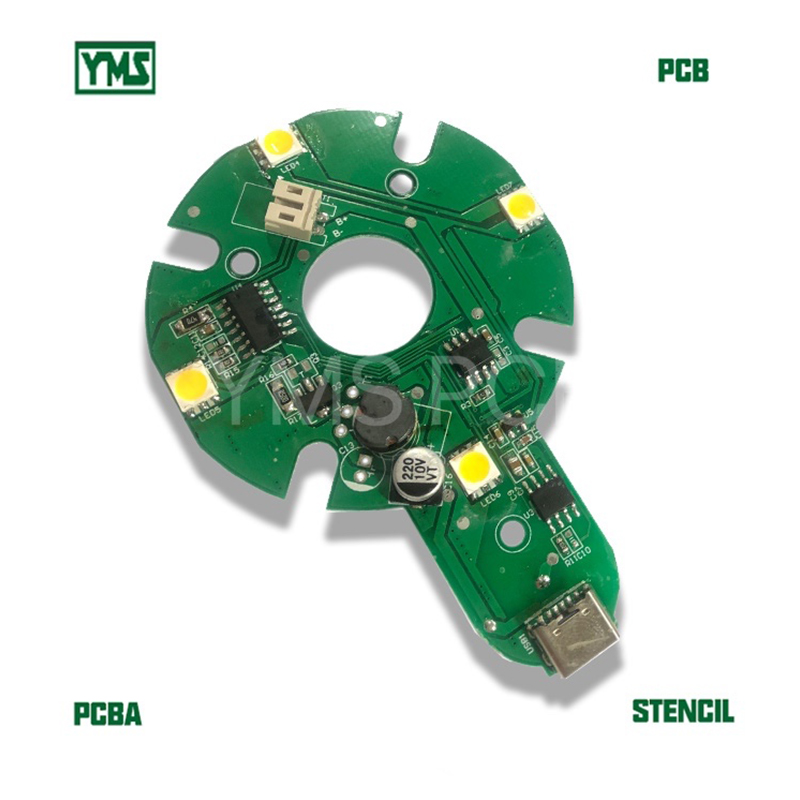

Oem, Odm Circuit Pcb Assembly Pcba

YMS PCB support PCB, circuit board and PCBA service over 20 years. We have strong team and high precision equipment to ensure the quality. Why customers choose working with YMS PCB?
1. Advanced production equipment: the new imported SMT patch machine XPF, NXT3 is from SAMSUNG, ten-temperature area lead-free return furnace;
2. Professional management team: the PCBA senior management team for more than 10 years, the SMT patch workshop implements NLP management process.
3. Advanced inspection equipment: AOI, SPI, XRAY, SMT patch, post-welding, function test one-stop service;
4. Quick turn delivery: PCBA engineering model completed within 3 days with 48 hours on time delivery rate is over 96%.

Send Inquiry

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

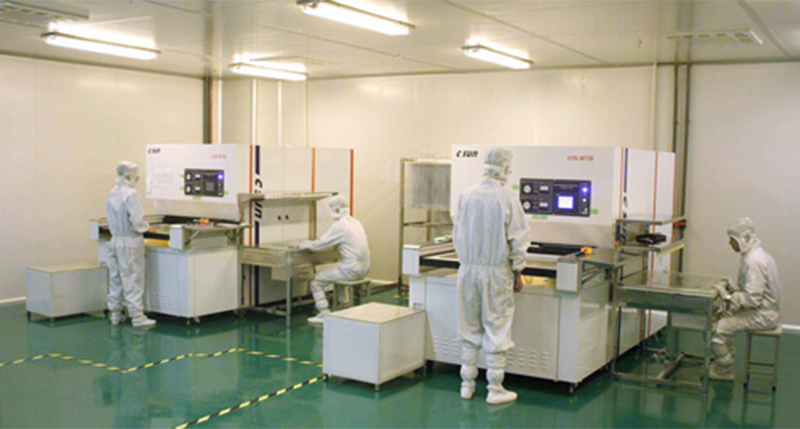

oem odm circuit pcb assembly pcba3

Product Parameters

Layers: 8 layers
Board Thickness: 1.6mm+/-0.16mm
Copper weight: 1 OZ for outer layer and inner layer
Material: FR-4 TG 170 from Sheng Yi (S1170, S1000-2, S1000-2M)
Min Holes: 0.2mm (8mil)
Minimum Track Width/Spacing:0.075mm/0.075mm (3mil/3mil)
Board Size: 154mm×96mm (6.063 x 3.78 inch)
Surface Treatment: ENIG (gold thickness 2u”)
Applications: industry control system
Impedance Control: Yes
Solder mask color: red
Silkscreen color: white

Product Features

SMT production capacity: 2 million + weldds /day
Fpping rate: Passive class 0.25%; IC class 0%
Welding type: rigid printed board (leaded and lead free)
min package: 03015 Chip/0.35 Pitch BGA

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.
