Pcb, Printed Circuit Board, Load Board, Probe Card, Bib, Interposer Board

We offer a 1-stop PCB service, from design to assembly and final function test. We provide PCB layout service, PCB manufacturing, PCB assembly, Purchasing Components. Our precision equipment helps us control the high quality of our PCBs, PRINTED CIRCUIT BOARD.

Send Inquiry

Engineering Department—CAM

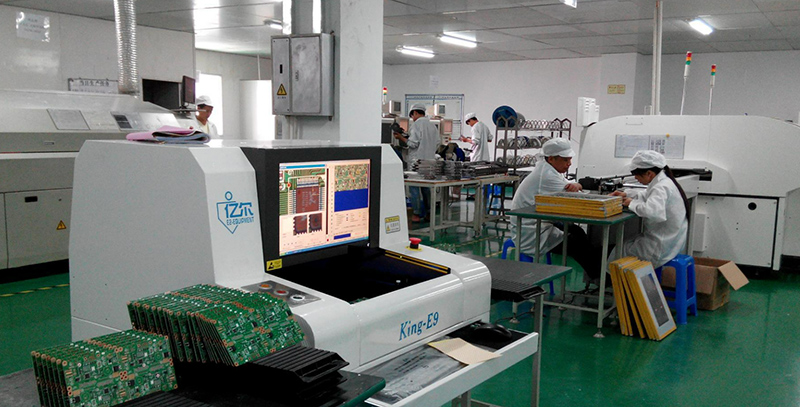

AOI—Automatic Optical Inspection
X-ray
AVI
Electronic Test 100%

pcb printed circuit board load board probe card bib interposer board4

Pls contact us at [email protected] for your PCB/FPC/PCBA/FPCA/STENCIL/ASSEMBLY service.

Product Parameters

Part Number: 24K PCBA PRINTED CIRCUIT BOARD
Layer Count: 14 layers
Material: FR-4 HIGH TG 180
Board Size: 245 x 162 mm
Copper weight: 1 OZ for L1&L14, H OZ for L2 to L13
Board thickness: 1.8mm
Min. Hole Size: 0.2mm
Aspect Ratio: 9:1
Min. Line Width & Spacing: 0.1mm/0.1mm
Application: RF Antenna PCBs/UAV PCBs
Certifications: UL, RoHS, SGS, ISO9001 ISO14000 TS16949 IATF
Shipping: DHL, UPS, TNT, FedEx

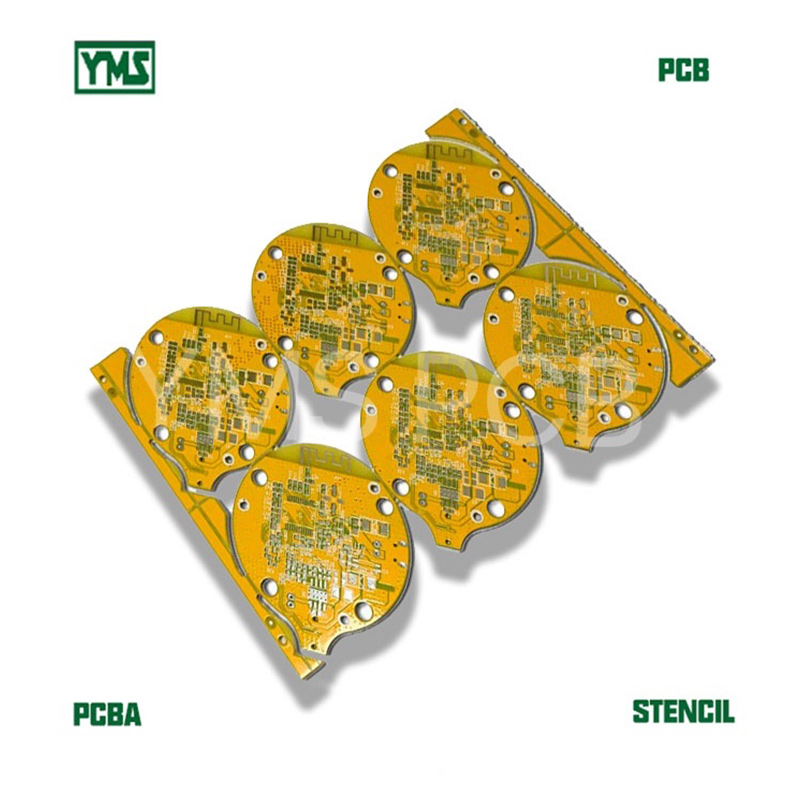

Solder mask: Yellow
Silkscreen: White
Origin: YMS PCB from Shenzhen China
Impedance: impedance control
Standard: Military Standard

Product Feature

Most of our PCB is using ENIG (Immersion Gold) as finished treatment, Immersion gold is a process that applies a very thin layer of gold with a displacement of the surface atoms. It means the coating of immersion gold PCB is not very thick, and it can be used for extending the shelf life of parts waiting for soldering operations because of corrosion resistance. We are One-Stop Solution for flex PCB/FPC/FPCA/PCB/PCBA since 2000 and are a Professional Manufacturer of FPCA/FPC/flex PCB
